Downlight (8-inch)

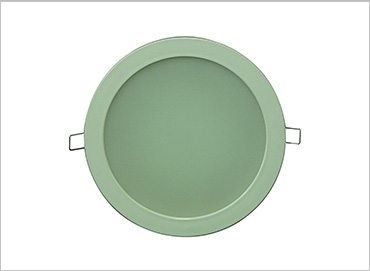

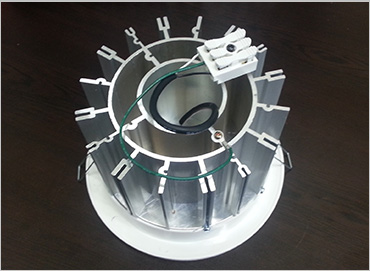

Products replacing the existing flush mount 8-inch , they are divided into 2 different types based on installation method (Developed and sold), lens type (120), color of lighting (2800~5700K) and color of enclosure (white).
Purpose of installation is to use as replacement indoor interior lighting in, for example, clothing stores, jewelry shops, beauty salons, department stores and optical stores
Product Specifications
| Power Consumption (W) | 24 |
|---|---|
| Input voltage (VAC) | 220 |
| Power Factor | 0.93↑ |
| The total luminous flux (lm) | 1680 |
| Luminous efficacy (lm / W) | 70 |
| Color Temperature (K) | 2800~5700 |
| Color rendering (Ra) | 80↑ |
| The radiation angle (angle) | 120 |
| Chip life (Hrs) | 50000 |
| Operating Temperature (℃) | -20~40 |

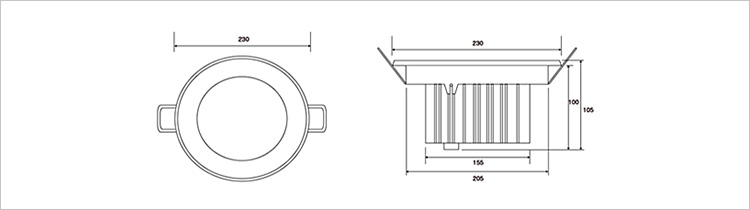

| Size (mm) | ∅230x105H |
| Weight (kg) | 0.72 |
| Perforated Size (mm) | ∅205x100H |
Direct Normal Illuminance (LUX)
| 24w: 70lm / w, the total amount of light 1680lm | ||||
|---|---|---|---|---|
| Height (m) | 40 degrees | 60 degrees | 80 degrees | 120 degrees |
| 1 | 1143 | 535 | ||
| 2 | 499 | 286 | 134 | |
| 3 | 493 | 222 | 127 | 59 |
| 4 | 277 | 125 | 71 | 33 |
| 5 | 177 | 80 | 46 | |
| 6 | 123 | 55 | 32 | |
| 7 | 90 | 41 | ||
| 8 | 69 | 31 | ||
| 9 | 55 | |||

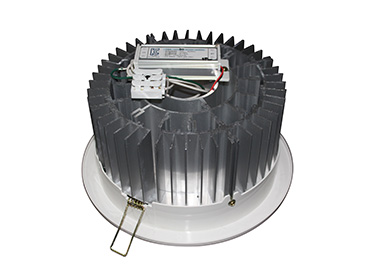

Products replacing the existing flush mount 8-inch , they are divided into 6 different types based on installation method (Developed and sold), lens type (40,60,80 & 120), color of lighting (2800~5700K) and color of enclosure (white).
Purpose of installation is to use as replacement indoor interior lighting in, for example, clothing stores, jewelry shops, beauty salons, department stores and optical stores
Product Specifications
| Power Consumption (W) | 45 |
|---|---|
| Input voltage (VAC) | 220 |
| Power Factor | 0.93↑ |
| The total luminous flux (lm) | 4050 |
| Luminous efficacy (lm / W) | 90 |
| Color Temperature (K) | 2800~5700 |
| Color rendering (Ra) | 80↑ |
| The radiation angle (angle) | 40,60,80,120 |
| Chip life (Hrs) | 50000 |
| Operating Temperature (℃) | -20~40 |

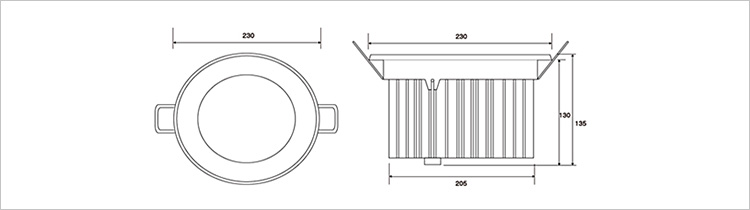

| Size (mm) | ∅230x135H |
| Weight (kg) | 1.5 |
| Perforated Size (mm) | ∅205x130H |
Direct Normal Illuminance (LUX)
| 45w 90lm / w, the total amount of light 4050lm | ||||
|---|---|---|---|---|
| Height (m) | 40 degrees | 60 degrees | 80 degrees | 120 degrees |
| 1 | 10688 | 4811 | 2755 | 1289 |
| 3 | 1188 | 535 | 306 | 143 |
| 5 | 428 | 192 | 110 | 51 |
| 7 | 218 | 98 | 56 | 26 |
| 9 | 132 | 59 | 34 | 16 |
| 10 | 107 | 48 | 28 | |
| 11 | 88 | 40 | 23 | |
| 13 | 63 | 28 | ||
| 15 | 48 | 21 | ||

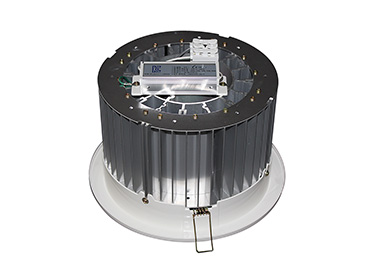

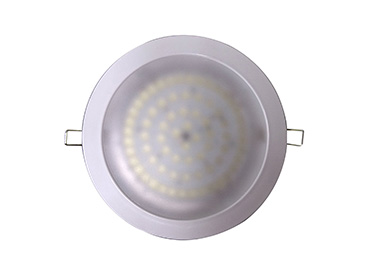

Products replacing the existing flush mount 8-inch , they are divided into 6 different types based on installation method (Developed and sold), lens type (40,60,80 & 120), color of lighting (2800~5700K) and color of enclosure (white).
Purpose of installation is to use as replacement indoor interior lighting in, for example, clothing stores, jewelry shops, beauty salons, department stores and optical stores
Product Specifications
| Power Consumption (W) | 60 |
|---|---|
| Input voltage (VAC) | 220 |
| Power Factor | 0.93↑ |
| The total luminous flux (lm) | 5400 |
| Luminous efficacy (lm / W) | 90 |
| Color Temperature (K) | 2800~5700 |
| Color rendering (Ra) | 80↑ |
| The radiation angle (angle) | 40,60,80,120 |
| Chip life (Hrs) | 50000 |
| Operating Temperature (℃) | -20~40 |

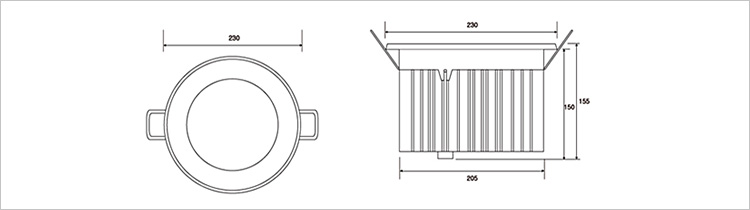

| Size (mm) | ∅230x155H |
| Weight (kg) | 2 |
| Perforated Size (mm) | ∅205x150H |
Direct Normal Illuminance (LUX)
| 60w 90lm / w, the total amount of light 5400lm | ||||
|---|---|---|---|---|
| Height (m) | 40 degrees | 60 degrees | 80 degrees | 120 degrees |
| 1 | 14251 | 6415 | 3674 | 1719 |
| 3 | 1583 | 713 | 408 | 191 |
| 5 | 570 | 257 | 147 | 69 |
| 7 | 291 | 131 | 75 | 35 |
| 9 | 176 | 79 | 45 | 21 |
| 10 | 143 | 64 | 37 | |
| 11 | 118 | 53 | 30 | |
| 13 | 84 | 38 | ||
| 15 | 63 | 29 | ||
-
