Spotlight

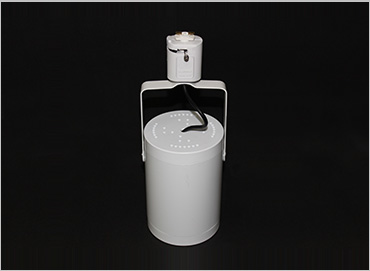

  • 22M01R(22W)

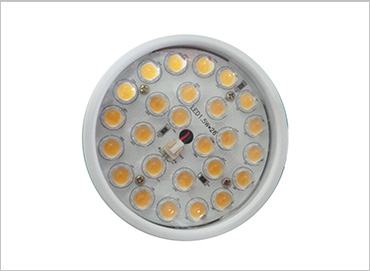

  • 22M01R(22W)
  • 22M01R(22W)

Products replacing the existing indoor interior lighting, they are divided into 8 different types based on installation method (rail, attached), lens type (40, 60, 80 & 120), color of lighting (2800~5700K) and color of enclosure (white, black).

Purpose of installation is to use as replacement indoor interior lighting in, for example, clothing stores, jewelry shops, beauty salons, department stores and optical stores

Product Specifications

product info
Power Consumption (W) 22
Input voltage (VAC) 220
Power Factor 0.93↑
The total luminous flux (lm) 1980
Luminous efficacy (lm / W) 90
Color Temperature (K) 2800~5700
Color rendering (Ra) 80↑
The radiation angle (angle) 40,60,80,120
Chip life (Hrs) 50000
Operating Temperature (℃) -20~40

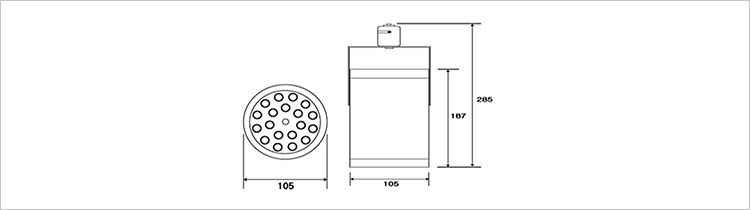

Size (mm) ∅105x285H
Weight (kg) 0.7
Perforated Size (mm)

Direct Normal Illuminance (LUX)

product info
22w: 90lm / w, the total amount of light 1980lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
1 5225 2352 1347 630
2 1306 588 337 158
3 580 261 150 70
4 327 147 84 39
5 209 94 54
6 145 65 37
7 107 48
8 82 36
9 65
10 52
