High bay Light

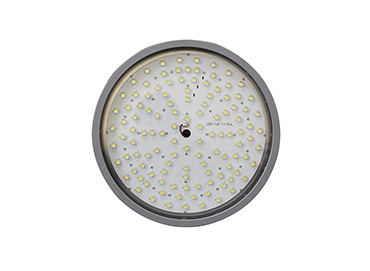

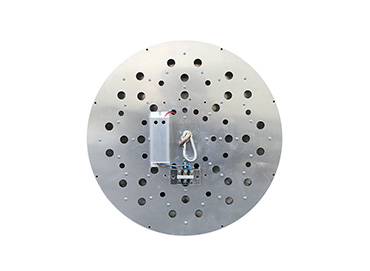

  • 24G05(24W)
  • 24G05(24W)
  • 24G05(24W)

Products replacing the existing HQ200~300W, they are divided into 4 different types based on installation method (Fixed), lens type (40, 60, 80 & 120), color of lighting (2800~5700K) and color of enclosure (silver).

Purpose of installation is to use as replacement lighting for factories, warehouses, large-scale markets and hangars

Product Specifications

product info
Power Consumption (W) 100
Input voltage (VAC) 220
Power Factor 0.93↑
The total luminous flux (lm) 9000~11000
Luminous efficacy (lm / W) 90~100
Color Temperature (K) 2800~5700
Color rendering (Ra) 80↑
The radiation angle (angle) 40,60,80,120
Chip life (Hrs) 50000
Operating Temperature (℃) -20~40

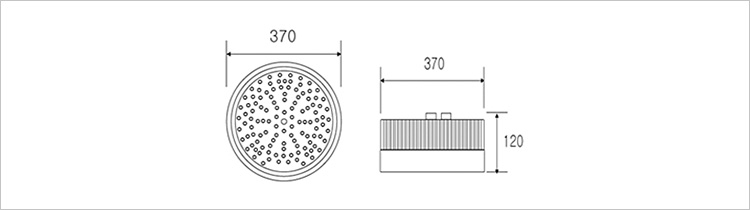

Size (mm) ∅370x120H
Weight (kg) 2.9
Perforated Size (mm)

Direct Normal Illuminance (LUX)

product info
100w: 90lm / w, the total amount of light 9000lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
3 2639 1188 680 318
5 950 428 245 115
8 371 167 96 45
10 238 107 61 29
12 165 74 43
15 106 48 27
18 73 33
20 59 27

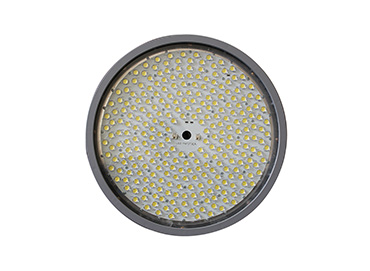

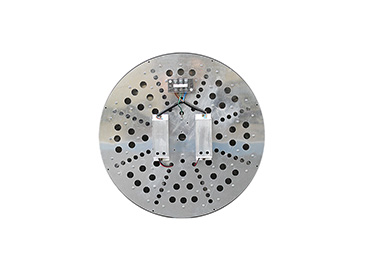

  • 200L09S(200W)
  • 200L09S(200W)
  • 200L09S(200W)

Products replacing the existing HQ400~600W, they are divided into 4 different types based on installation method (Fixed), lens type (40, 60, 80 & 120), color of lighting (2800~5700K) and color of enclosure (silver).

Purpose of installation is to use as replacement lighting for factories, warehouses, large-scale markets and hangars

Product Specifications

product info
Power Consumption (W) 200
Input voltage (VAC) 220
Power Factor 0.93↑
The total luminous flux (lm) 18000~22000
Luminous efficacy (lm / W) 90~110
Color Temperature (K) 2800~5700
Color rendering (Ra) 80↑
The radiation angle (angle) 40,60,80,120
Chip life (Hrs) 50000
Operating Temperature (℃) -20~40

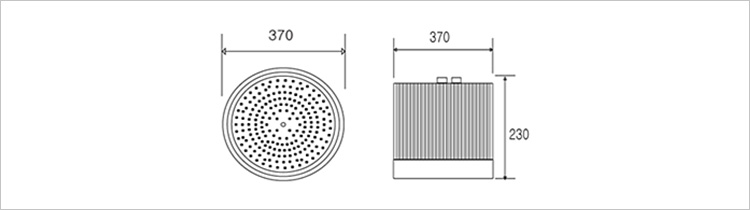

Size (mm) ∅370x230H
Weight (kg) 7.6
Perforated Size (mm)

Direct Normal Illuminance (LUX)

product info
200w 90lm / w, the total amount of light 1800lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
3 5278 2376 1361 637
5 1900 855 490 229
8 742 334 191 90
10 475 214 122 57
12 330 149 85 39
15 211 95 54
18 147 66 38
20 119 53
25 76 34
30 53
