Floodlight(Q Type)

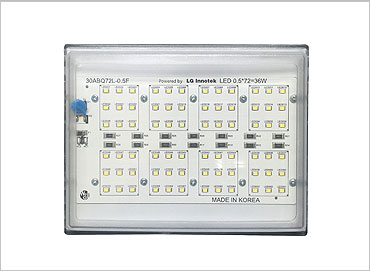

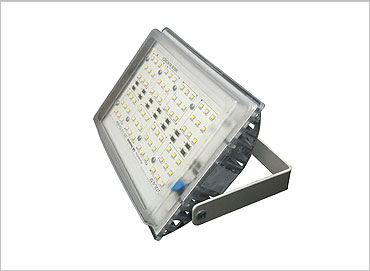

  • 30Q05(30W)
  • 30Q05(30W)
  • 30Q05(30W)

Products replacing the existing HQI75~150W, they are divided into 8 different types based on installation method (exposed), lens type (40, 60, 80 & 120), color of lighting (2800~5700K) and color of enclosure (white, black).

Purpose of installation is to use as replacement landscape lighting on, for example, exterior walls of buildings, trees, sculpture, bridges, and signs and in golf courses

Product Specifications

product info
Power Consumption (W) 30
Input voltage (VAC) 220
Power Factor 0.93↑
The total luminous flux (lm) 2700~3300
Luminous efficacy (lm / W) 90~110
Color Temperature (K) 2800~5700
Color rendering (Ra) 80↑
The radiation angle (angle) 40,60,80,120
Chip life (Hrs) 50000
Operating Temperature (℃) -20~40

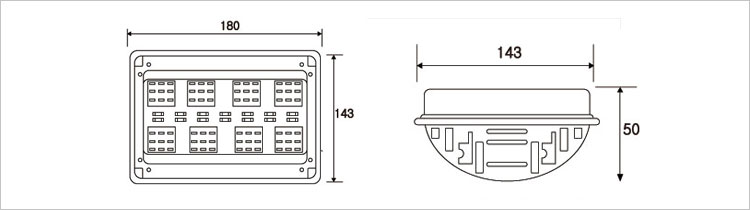

Size (mm) 180Wx143Lx50H
Weight (kg) 0.8
Perforated Size (mm)

Direct Normal Illuminance (LUX)

product info
30w: 90lm / w, the total amount of light 2700lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
1 7125 3207 1837 859
2 1781 802 459 215
3 792 356 204 96
4 445 200 115 54
5 285 128 73 34
6 198 89 51 24
7 145 65 37 18
8 111 50 29 13
9 88 40 23 11
10 71 32 18 9

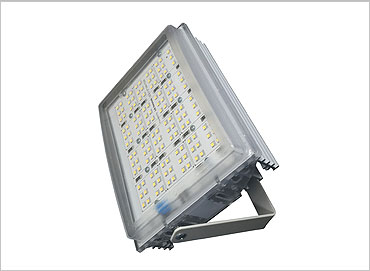

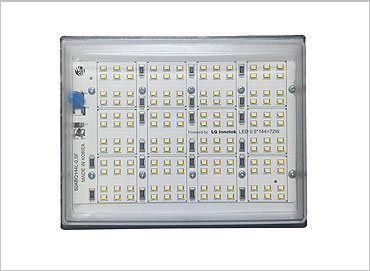

  • 50Q01(50W)
  • 50Q01(50W)
  • 50Q01(50W)

Products replacing the existing HQ100~200W, they are divided into 8 different types based on installation method (exposed), lens type (40, 60, 80 & 120), color of lighting (2800~5700K) and color of enclosure (white, black).

Purpose of installation is to use as replacement landscape lighting on, for example, exterior walls of buildings, trees, sculpture, bridges, and signs and in golf courses

Product Specifications

product info
Power Consumption (W) 50
Input voltage (VAC) 220
Power Factor 0.93↑
The total luminous flux (lm) 4050~4950
Luminous efficacy (lm / W) 90~110
Color Temperature (K) 2800~5700
Color rendering (Ra) 80↑
The radiation angle (angle) 40,60,80,120
Chip life (Hrs) 50000
Operating Temperature (℃) -20~40

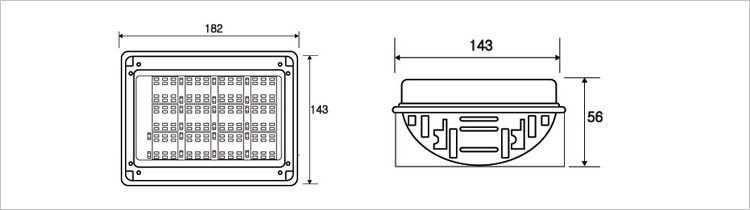

Size (mm) WxLxH
Weight (kg) 0.
Perforated Size (mm)

Direct Normal Illuminance (LUX)

product info
50w 90lm / w, the total amount of light 4500lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
1 11876 5346 3061 1432
3 1320 594 340 159
5 475 214 122 57
7 242 109 62 29
9 147 66 38 18
10 119 53 31
11 98 44 25
13 70 32
15 53 24

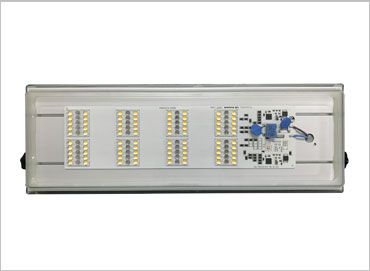

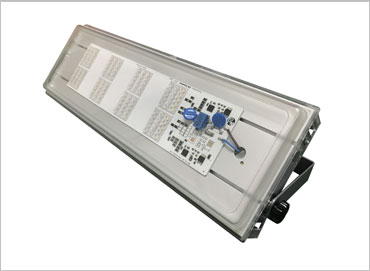

  • 70Q09S(70W)
  • 70Q09S(70W)
  • 70Q09S(70W)

Products replacing the existing HQ120~250W, they are divided into 4 different types based on installation method (exposed), lens type (40, 60, 80 & 120), color of lighting (2800~5700K) and color of enclosure (silver).

Purpose of installation is to use as replacement landscape lighting on, for example, exterior walls of buildings, trees, sculpture, bridges, and signs and in golf courses

Product Specifications

product info
Power Consumption (W) 70
Input voltage (VAC) 220
Power Factor 0.93↑
The total luminous flux (lm) 6300~7700
Luminous efficacy (lm / W) 90~110
Color Temperature (K) 2800~5700
Color rendering (Ra) 80↑
The radiation angle (angle) 40,60,80,120
Chip life (Hrs) 50000
Operating Temperature (℃) -20~40
Size (mm) 415Wx143Lx57H
Weight (kg) 1.5
Perforated Size (mm)

Direct Normal Illuminance (LUX)

product info
70w: 90lm / w, the total amount of light 6300lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
1 16626 7484 4286 2005
3 1847 831 476 223
5 665 299 171 80
7 339 152 87 41
9 205 92 53 25
10 166 75 43
11 137 62 35
13 74 44
15 58 33
17 46

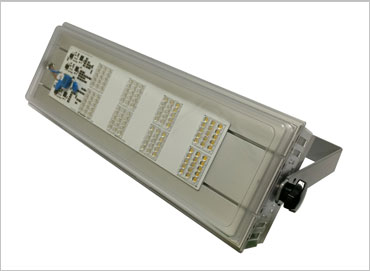

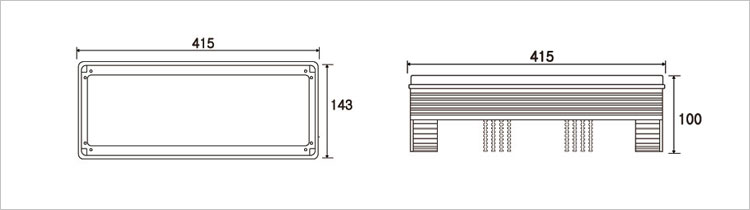

  • 100Q09S(100W)
  • 100Q09S(100W)
  • 100Q09S(100W)

Products replacing the existing HQ200~300W, they are divided into 4 different types based on installation method (exposed), lens type (40, 60, 80 & 120), color of lighting (2800~5700K) and color of enclosure (silver).

Purpose of installation is to use as replacement landscape lighting on, for example, exterior walls of buildings, trees, sculpture, bridges, and signs and in golf courses

Product Specifications

product info
Power Consumption (W) 100
Input voltage (VAC) 220
Power Factor 0.93↑
The total luminous flux (lm) 9000~11000
Luminous efficacy (lm / W) 90~110
Color Temperature (K) 2800~5700
Color rendering (Ra) 80↑
The radiation angle (angle) 40,60,80,120
Chip life (Hrs) 50000
Operating Temperature (℃) -20~40
Size (mm) 415Wx143Lx95H
Weight (kg) 2.8
Perforated Size (mm)

Direct Normal Illuminance (LUX)

product info
100w: 90lm / w, the total amount of light 9000lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
3 2639 1188 680 318
5 950 428 245 115
8 371 167 96 45
10 238 107 61 29
12 165 74 43
15 106 48 27
18 73 33
20 59 27

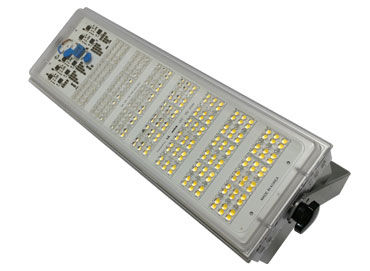

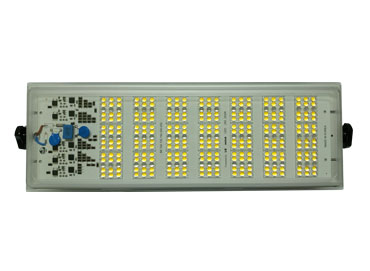

  • 200Q09S(200W)
  • 200Q09S(200W)
  • 200Q09S(200W)

Products replacing the existing HQ400~600W, they are divided into 8 different types based on installation method (exposed), lens type (40, 60, 80 & 120), color of lighting (2800~5700K) and color of enclosure (silver).

Purpose of installation is to use as replacement landscape lighting on, for example, exterior walls of buildings, trees, sculpture, bridges, and signs and in golf courses

Product Specifications

product info
Power Consumption (W) 200
Input voltage (VAC) 220
Power Factor 0.93↑
The total luminous flux (lm) 22000
Luminous efficacy (lm / W) 110
Color Temperature (K) 2800~5700
Color rendering (Ra) 80↑
The radiation angle (angle) 40,60,80,120
Chip life (Hrs) 50000
Operating Temperature (℃) -20~40

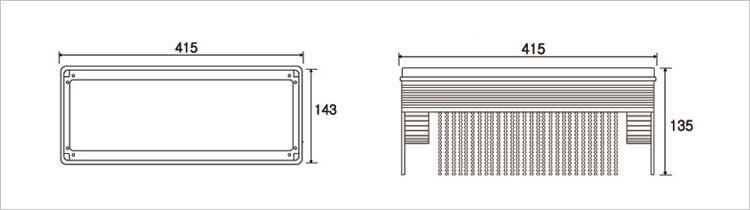

Size (mm) 415Wx143Lx171H
Weight (kg) 7.6
Perforated Size (mm)

Direct Normal Illuminance (LUX)

product info
200w: 110lm / w, the total amount of light 22000lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
3 778
5 1045 599 280
8 408 234 109
10 580 261 150 70
12 403 181 104 49
15 258 116 67
18 179 81 46
20 145 65
25 92
30 65
