Floodlight Fixed Light Fixtures

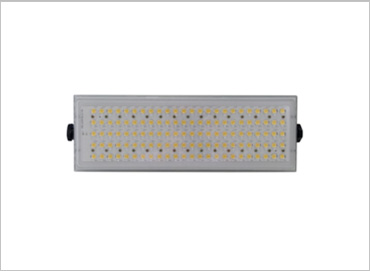

  • 100W
  • 100W
  • 100W

Products replacing the existing HQI200~300W, they are divided into 8 different types based on installation method (exposed), lens type (40, 60, 80 & 120), color of lighting (2800~5700K),
Divided into 4 different types based on color of enclosure (silver)

Purpose of installation is to use as replacement landscape lighting on, for example, exterior walls of buildings, trees, sculpture, bridges and in golf courses

Product Specifications

product info
Electrical Power Consumption (W) 100
Input Voltage (VAC) 220
Power Factor 0.93↑
Total Luminous Flux (lm) 9000~11000
Luminous Efficacy (lm/W) 90~110
Color Temperature (K) 2800~5700
Color Rendition (Ra) 80↑
Angle of Radiation (angle) 40,60,80,120
Lift Expectancy of Chip (Hrs.) 50000
Operating Temperature (⁰C) -20~40

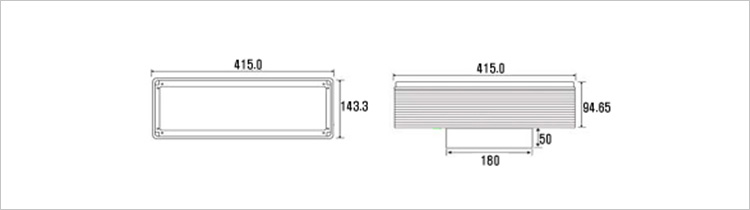

Size (mm) 415Wx143Lx95H
Weight (kg) 2.8
Hole Size (mm)

Direct Normal Illuminance (LUX)

product info
100w: 100lm / w, Angle of Radiation 9000lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
3 2639 1188 680 318
5 950 428 245 115
8 371 167 96 45
10 238 107 61 29
12 165 74 43
15 106 48 27
18 73 33
20 59 27

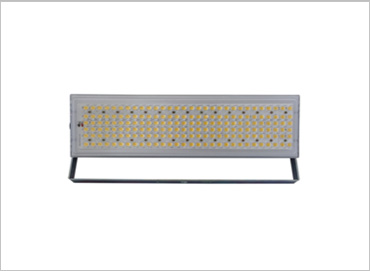

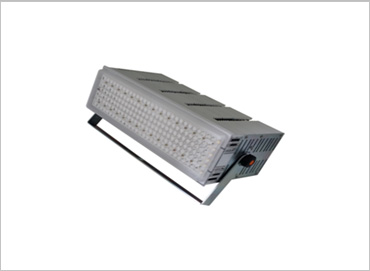

  • 200W
  • 200W
  • 200W

Products replacing the existing HQI400~600W, they are divided into 8 different types based on installation method (exposed), lens type (40, 60, 80 & 120), color of lighting (2800~5700K),
Divided into 4 different types based on color of enclosure (silver)

Purpose of installation is to use as replacement landscape lighting on, for example, exterior walls of buildings, trees, sculpture, bridges, and signs and in golf courses

Product Specifications

product info
Electrical Power Consumption (W) 200
Input Voltage (VAC) 220
Power Factor 0.93↑
Total Luminous Flux (lm) 22000
Luminous Efficacy (lm/W) 110
Color Temperature (K) 2800~5700
Color Rendition (Ra) 80↑
Angle of Radiation (angle) 40,60,80,120
Lift Expectancy of Chip (Hrs.) 50000
Operating Temperature (⁰C) -20~40

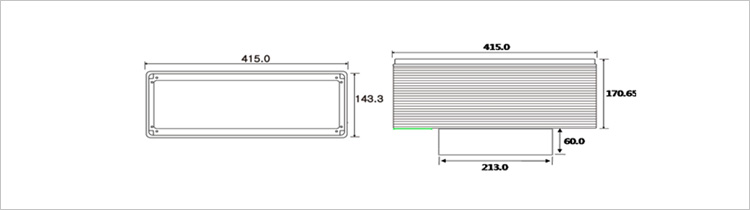

Size (mm) 415Wx143Lx171H
Weight (kg) 7.6
Hole Size (mm)

Direct Normal Illuminance (LUX)

product info
200w: 110lm / w, Angle of Radiation 2200lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
3 778
5 1045 599 280
8 408 234 109
10 580 261 150 70
12 403 181 104 49
15 258 116 67
18 179 81 46
20 145 65
25 92
30 65
