Downlight (6-inch)

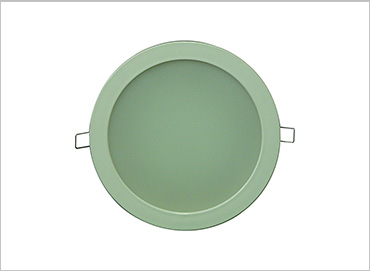

  • 24G05(24W)
  • 24G05(24W)
  • 24G05(24W)

Products replacing the existing flush mount 6-inch , they are divided into 2 different types based on installation method (Developed and sold), lens type (120), color of lighting (2800~5700K) and color of enclosure (white).

Purpose of installation is to use as replacement indoor interior lighting in, for example, clothing stores, jewelry shops, beauty salons, department stores and optical stores

Product Specifications

product info
Power Consumption (W) 24
Input voltage (VAC) 220
Power Factor 0.93↑
The total luminous flux (lm) 1680
Luminous efficacy (lm / W) 70
Color Temperature (K) 2800~5700
Color rendering (Ra) 80↑
The radiation angle (angle) 120
Chip life (Hrs) 50000
Operating Temperature (℃) -20~40

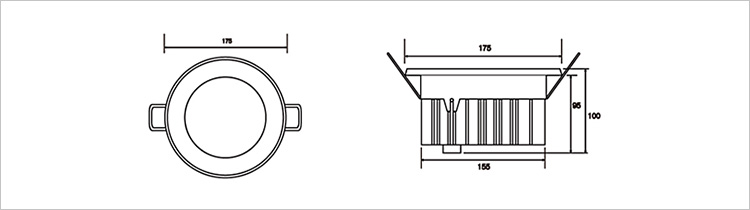

Size (mm) ∅175x100H
Weight (kg) 0.55
Perforated Size (mm) ∅155x95H

Direct Normal Illuminance (LUX)

product info
24w: 70lm / w, the total amount of light 1680lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
1 1143 535
2 499 286 134
3 493 222 127 59
4 277 125 71 33
5 177 80 46
6 123 55 32
7 90 41
8 69 31
9 55
