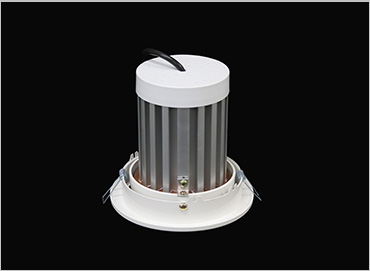

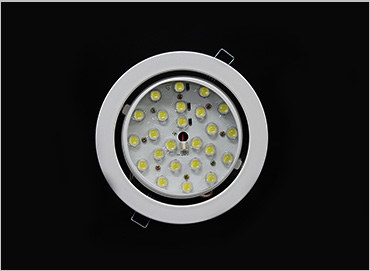

Multi-Downlight(Circular)

  • 24K01S(24W)
  • 24K01S(24W)
  • 24K01S(24W)

Products replacing the existing indoor interior lighting, they are divided into 8 different types based on installation method (Developed and sold), lens type (40, 60, 80 & 120), color of lighting (2800~5700K) and color of enclosure (white).

Purpose of installation is to use as replacement lighting in department stores, luxury goods and clothing stores and large-scale markets

Product Specifications

product info
Power Consumption (W) 24
Input voltage (VAC) 220
Power Factor 0.93↑
The total luminous flux (lm) 2160
Luminous efficacy (lm / W) 90
Color Temperature (K) 2800~5700
Color rendering (Ra) 80↑
The radiation angle (angle) 40,60,80,120
Chip life (Hrs) 50000
Operating Temperature (℃) -20~40

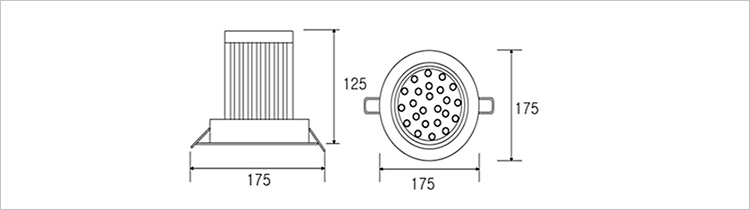

Size (mm) 175∅x125H
Weight (kg) 0.65
Perforated Size (mm) 160∅

Direct Normal Illuminance (LUX)

product info
24w: 90lm / w, the total amount of light 2160lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
1 5700 2566 1469 688
2 1425 642 367 172
3 633 285 163 76
4 356 160 92 43
5 228 103 59
6 158 71 41
7 116 52
8 89 40
9 70
10 57
