Floodlight (A Type)

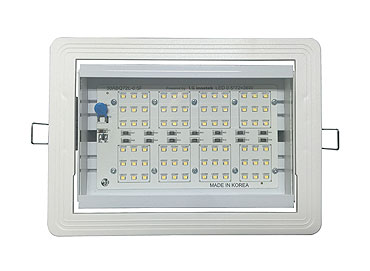

  • 30A05(30W)
  • 30A05(30W)
  • 30A05(30W)

Products replacing the existing HQI75~150W, they are divided into 8 different types based on installation method (Developed and sold), lens type (40, 60, 80 & 120), color of lighting (2800~5700K) and color of enclosure (white, black).

Purpose of installation is to use as replacement indoor interior lighting in, for example, clothing stores, jewelry shops, beauty salons, department stores and optical stores

Product Specifications

product info
Power Consumption (W) 30
Input voltage (VAC) 220
Power Factor 0.93↑
The total luminous flux (lm) 2700~3300
Luminous efficacy (lm / W) 90~110
Color Temperature (K) 2800~5700
Color rendering (Ra) 80↑
The radiation angle (angle) 40,60,80,120
Chip life (Hrs) 50000
Operating Temperature (℃) -20~40

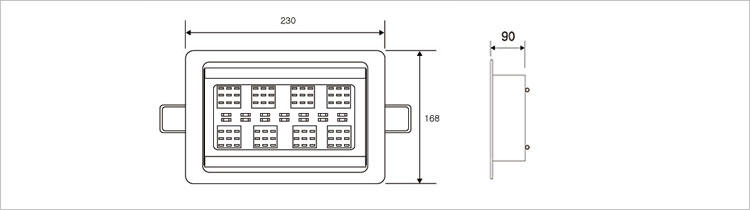

Size (mm) 230Wx168Lx90H
Weight (kg) 1
Perforated Size (mm) 220Wx150L

Direct Normal Illuminance (LUX)

product info
30w: 90lm / w, the total amount of light 2700lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
1 7125 3207 1837 859
2 1781 802 459 215
3 792 356 204 96
4 445 200 115 54
5 285 128 73 34
6 198 89 51 24
7 145 65 37 18
8 111 50 29 13
9 88 40 23 11
10 71 32 18 9

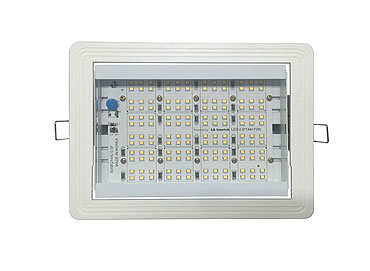

  • 50A04(50W)
  • 50A04(50W)
  • 50A04(50W)

Products replacing the existing HQI75~150W, they are divided into 8 different types based on installation method (Developed and sold), lens type (40, 60, 80 & 120), color of lighting (2800~5700K) and color of enclosure (white, black).

Purpose of installation is to use as replacement indoor interior lighting in, for example, clothing stores, jewelry shops, beauty salons, department stores and optical stores

Product Specifications

product info
Power Consumption (W) 45
Input voltage (VAC) 220
Power Factor 0.93↑
The total luminous flux (lm) 4050~4950
Luminous efficacy (lm / W) 90~110
Color Temperature (K) 2800~5700
Color rendering (Ra) 80↑
The radiation angle (angle) 40,60,80,120
Chip life (Hrs) 50000
Operating Temperature (℃) -20~40

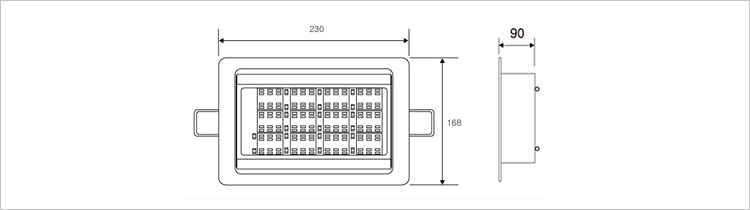

Size (mm) 230Wx168Lx90H
Weight (kg) 1.1
Perforated Size (mm) 220Wx150L

Direct Normal Illuminance (LUX)

product info
45w 90lm / w, the total amount of light 4050lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
1 10688 4811 2755 1289
3 1188 535 306 143
5 428 192 110 51
7 218 98 56 26
9 132 59 34 16
10 107 48 28
11 88 40 23
13 63 28
15 48 21
