Floodlight3 (Q Type,DC)

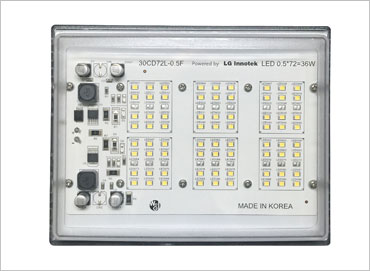

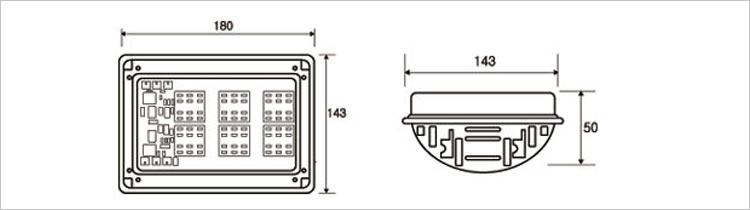

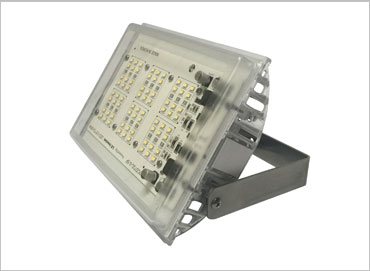

  • 30C05(12V, 30W)
  • 30C05(12V, 30W)
  • 30C05(12V, 30W)

Products replacing the existing lighting installed in ships, they are divided into 8 different types based on installation method (exposed), lens type (40, 60, 80 & 120), color of lighting (5700K) and color of enclosure (white, black).

Purpose of installation is to use as replacement lighting for fish-luring lights other lighting that can be used on ships, lighting for cars and agricultural machines

Product Specifications

product info
Power Consumption (W) 30
Input voltage (VAC) 12
Power Factor 0.93↑
The total luminous flux (lm) 2700~3300
Luminous efficacy (lm / W) 90~110
Color Temperature (K) 2800~5700
Color rendering (Ra) 80↑
The radiation angle (angle) 40,60,80,120
Chip life (Hrs) 50000
Operating Temperature (℃) -20~40
Size (mm) 170Wx120Lx60H
Weight (kg) 0.8
Perforated Size (mm)

Direct Normal Illuminance (LUX)

product info
30w: 90lm / w, the total amount of light 2700lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
1 7125 3207 1837 859
2 1781 802 459 215
3 792 356 204 96
4 445 200 115 54
5 285 128 73 34
6 198 89 51 24
7 145 65 37 18
8 111 50 29 13
9 88 40 23 11
10 71 32 18 9

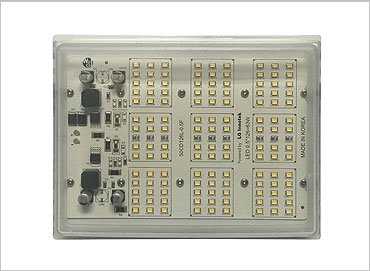

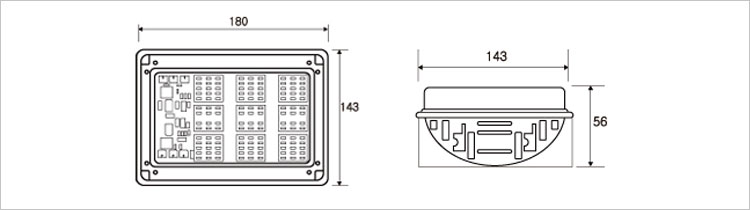

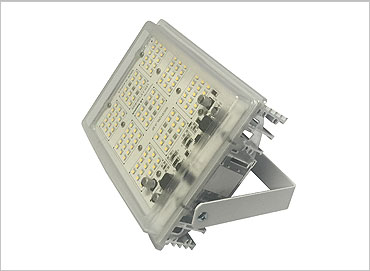

  • 60C05(12V, 60W)
  • 60C05(12V, 60W)
  • 60C05(12V, 60W)

Products replacing the existing lighting installed in ships, they are divided into 8 different types based on installation method (exposed), lens type (40, 60, 80 & 120), color of lighting (5700K) and color of enclosure (white, black).

Purpose of installation is to use as replacement lighting for fish-luring lights other lighting that can be used on ships, lighting for cars and agricultural machines

Product Specifications

product info
Power Consumption (W) 60
Input voltage (VAC) 12
Power Factor 0.93↑
The total luminous flux (lm) 5400~6600
Luminous efficacy (lm / W) 90~110
Color Temperature (K) 2800~5700
Color rendering (Ra) 80↑
The radiation angle (angle) 40,60,80,120
Chip life (Hrs) 50000
Operating Temperature (℃) -20~40
Size (mm) 350Wx120Lx60H
Weight (kg) 1.4
Perforated Size (mm)

Direct Normal Illuminance (LUX)

product info
60w 90lm / w, the total amount of light 5400lm
Height (m) 40 degrees 60 degrees 80 degrees 120 degrees
1 14251 6415 3674 1719
3 1583 713 408 191
5 570 257 147 69
7 291 131 75 35
9 176 79 45 21
10 143 64 37
11 118 53 30
13 84 38
15 63 29
