fish-luring lamp

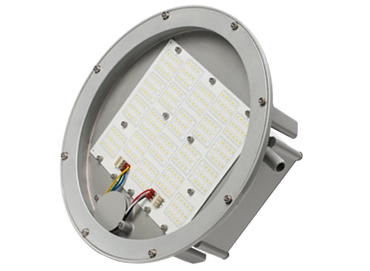

Products replacing the existing HQI75~150W, they are divided into 8 different types based on installation method (exposed), lens type (40, 60, 80), color of lighting (2800~5700K) and color of enclosure (white, black).
Purpose of installation is to use as replacement landscape lighting on, for example, exterior walls of buildings, trees, sculpture, bridges, and signs and in golf courses
Product Specifications
| Power Consumption (W) | 600 |
|---|---|
| Input voltage (VAC) | 200~260V |
| Power Factor | 0.9↑ |
| The total luminous flux (lm) | 60,000 |
| Luminous efficacy (lm / W) | 100 |
| Color Temperature (K) | 2800~5700 |
| Color rendering (Ra) | 70↑ |
| The radiation angle (angle) | 40,60,80, |
| Chip life (Hrs) | 50000 |
| Operating Temperature (℃) | -20~40 |
| Size (mm) | 301￠*96H |
| Weight (kg) | 3.9 |
| Perforated Size (mm) |
Products replacing the existing HQI75~200W, they are divided into 8 different types based on installation method (exposed), lens type (40, 60, 80), color of lighting (2800~5700K) and color of enclosure (white, black).
Purpose of installation is to use as replacement landscape lighting on, for example, exterior walls of buildings, trees, sculpture, bridges, and signs and in golf courses
Product Specifications
| Power Consumption (W) | 1KW |
|---|---|
| Input voltage (VAC) | 200~260 |
| Power Factor | 0.9↑ |
| The total luminous flux (lm) | 100,000 |
| Luminous efficacy (lm / W) | 100 |
| Color Temperature (K) | 6500 |
| Color rendering (Ra) | 70↑ |
| The radiation angle (angle) | 40,60,80 |
| Chip life (Hrs) | 50000 |
| Operating Temperature (℃) | -20~40 |
| Size (mm) | 301￠*x96H |
| Weight (kg) | 3.9 |
| Perforated Size (mm) |
Products replacing the existing HQI75~250W, they are divided into 4 different types based on installation method (exposed), lens type (40, 60, 80 & 120), color of lighting (2800~5700K) and color of enclosure (white, black).
Purpose of installation is to use as replacement landscape lighting on, for example, exterior walls of buildings, trees, sculpture, bridges, and signs and in golf courses
Product Specifications
| Power Consumption (W) | 60 |
|---|---|
| Input voltage (VAC) | 220 |
| Power Factor | 0.93↑ |
| The total luminous flux (lm) | 5400~6600 |
| Luminous efficacy (lm / W) | 90~110 |
| Color Temperature (K) | 2800~5700 |
| Color rendering (Ra) | 80↑ |
| The radiation angle (angle) | 40,60,80,120 |
| Chip life (Hrs) | 50000 |
| Operating Temperature (℃) | -20~40 |
| Size (mm) | 350Wx120Lx60H |
| Weight (kg) | 1.4 |
| Perforated Size (mm) |
Direct Normal Illuminance (LUX)
| 60w 90lm / w, the total amount of light 5400lm | ||||
|---|---|---|---|---|
| Height (m) | 40 degrees | 60 degrees | 80 degrees | 120 degrees |
| 1 | 14251 | 6415 | 3674 | 1719 |
| 3 | 1583 | 713 | 408 | 191 |
| 5 | 570 | 257 | 147 | 69 |
| 7 | 291 | 131 | 75 | 35 |
| 9 | 176 | 79 | 45 | 21 |
| 10 | 143 | 64 | 37 | |
| 11 | 118 | 53 | 30 | |
| 13 | 84 | 38 | ||
| 15 | 63 | 29 | ||
-
